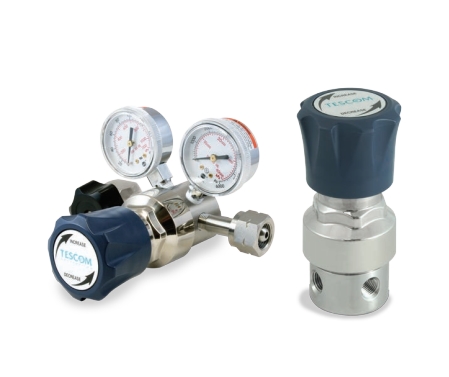

TESCOM SG1 Series is a compact, lightweight
high purity single-stage regulator for specialty and
industrial gas flows of less than 10 SCFM / 283 SLPM.
Sensitive, extra long-life metal diaphragm ensures
gas purity and integrity. User-friendly model number
enables the specifier to select optional gauges, relief
and shut-off valves, and cylinder connections as part
of the regulator assembly.
Body: 316L Stainless Steel, Nickel-Plated Brass
Seat: PCTFE, Polyimide*
Design Proof Pressure: 150% maximum rated
Leakage:
Internal: Bubble-tight
External: Designed to meet
< 2 x 10-8 atm cc/sec He / < 2 x 10-8 mbar l/s He
Operating Temperature:
PCTFE seat: -40°F to 140°F / -40°C to 60°C
Polyimide* seat: -40°F to 250°F / -40°C to 121°C
Flow Capacity: Cv = 0.06, 0.2
