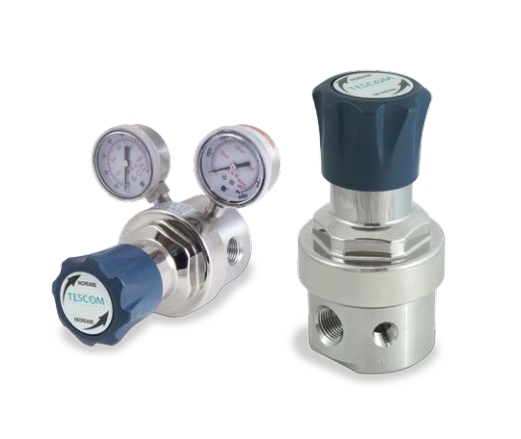

TESCOM SG3 Series is a compact, lightweight,
high purity single-stage regulator for specialty,
flammable and industrial gas flows of 5-200 SCFM /
141-5600 SLPM. Sensitive, extra long-life metal
diaphragm ensures gas purity and integrity.
Exceptionally low decaying inlet characteristic
provides a stable outlet pressure as inlet pressure
varies. User-friendly model number enables the
specifier to select optional gauges, relief and
shut-off valves and cylinder connections as part of
the regulator assembly.
Design Proof Pressure:
150% of rated pressure
Leakage:
Internal: Bubble-tight
External: Designed to meet < 2 x 10-8 atm cc/sec He
Operating Temperature:
-40°F to 140°F / -40°C to 60°C
Flow Capacity: Cv = 1.0
Body: 316L Stainless Steel, Nickel-Plated Brass
Seat: PCTFE
Diaphragm: 316L Stainless Steel or Neoprene
